Segmentation

Mesh names for automatically initializing IDs

If using Project AirSim’s automatic segmentation ID initialization (segmentation config setting initialize-ids set to true), the mesh names will be used for calculating the hash to set the ID value. There are multiple names at each level of the actor hierarchy that contains the mesh, so an example for viewing the names in the Editor is explained below:

Example for Ground StaticMeshActor:

  1. The name listed in the World Outliner is the actor’s label. This is only a display name used by the Editor, and is NOT used as a name for segmentation ID hashing.

  2. The name listed if you mouse-over the actor name is the actor’s name, which is the owner’s name for the mesh (“Ground”).

  3. In the Details tab component list for the actor, the StaticMeshComponent is shown and can be selected to see its details, but the name of the mesh component is not visible in the Editor (“StaticMeshComponent0”).

  4. In the mesh component’s details, the actual StaticMesh is shown with the mesh’s name (“TemplateFloor”).

Note: Changing the actor’s name using the field at the top of the Detail section applies the change to both #1 and #2 names described above.

If the segmentation config setting for use-owner-name is true, the #2 owner’s name will be used for the ID hashing. If false, the #4 mesh’s name will be used.

mesh

Assigning segmentation IDs in Unreal Editor

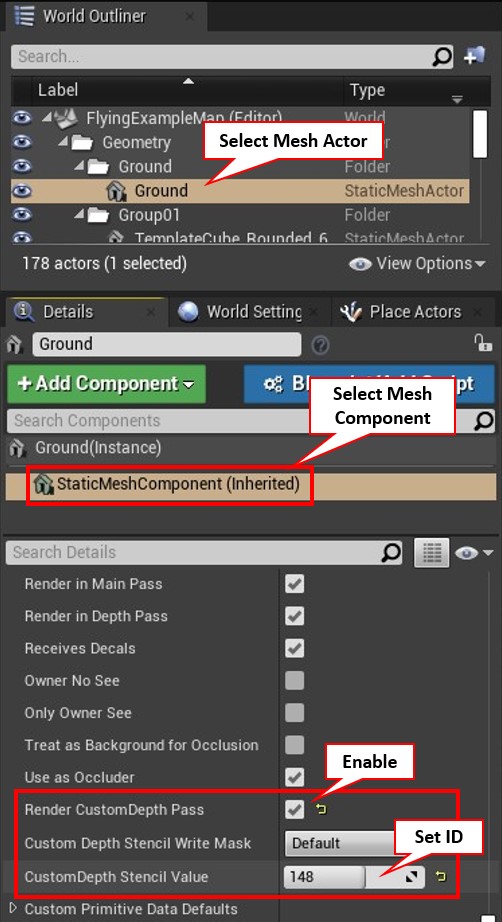

To set the segmentation IDs manually in the Unreal Editor (and be able to save them to persist in the environment), select the actor to modify in the World Outliner list. Next, select the mesh component in the Details tab and scroll down to the Rendering setting to enable Render CustomDepth Pass. Once enabled, the ID value can be set in CustomDepth Stencil Value.

mesh

A global setting must also be activated to enable all CustomDepth rendering, which can be done by running the console command (open console with tilde key):

r.CustomDepth 3

Alternatively, this setting can be enabled in Project Settings under Engine - Rendering -> Postprocessing -> Custom Depth-Stencil Pass set to Enabled with Stencil.

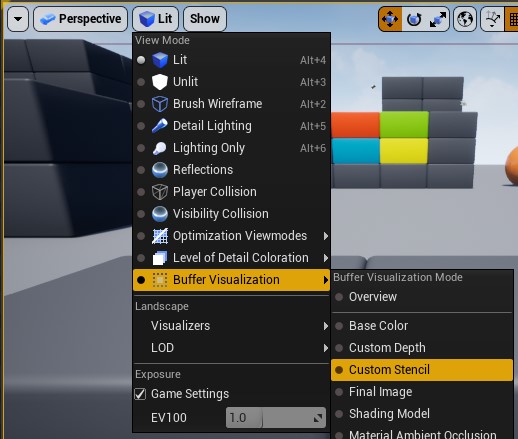

Once this feature is enabled and the objects are assigned IDs, you can visualize the segmentation in the viewport by changing the view from Lit to Buffer Visualization -> Custom Stencil.

mesh

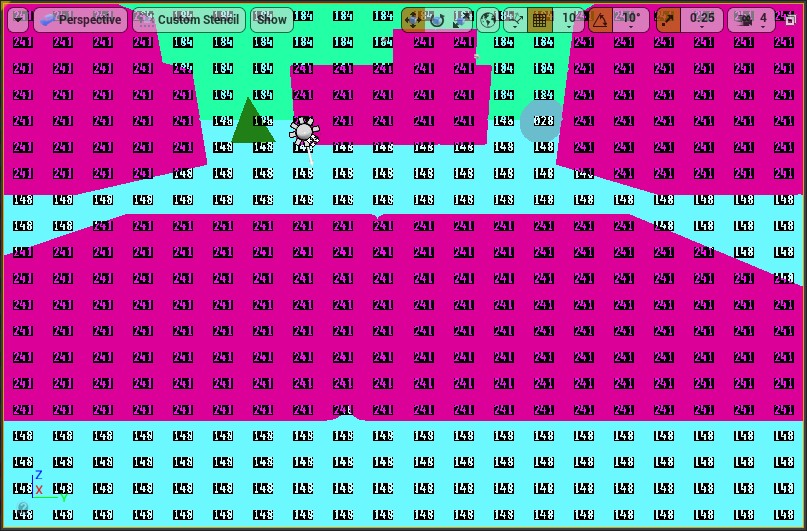

If everything is set properly, the view will be colored by the ID groupings and the ID labels will be visible.

Note: the color pallet Unreal uses is different from the Project AirSim segmentation color pallet.

mesh

Segmentation Pallet

The segmentation camera’s image has pixels with RGB values specified based on each object’s segmentation ID, using the fixed pallet below.

SegmentationID [R, G, B]

  0 [55, 181, 57]
  1 [153, 108, 6]
  2 [112, 105, 191]
  3 [89, 121, 72]
  4 [190, 225, 64]
  5 [206, 190, 59]
  6 [81, 13, 36]
  7 [115, 176, 195]
  8 [161, 171, 27]
  9 [135, 169, 180]
 10 [29, 26, 199]
 11 [102, 16, 239]
 12 [242, 107, 146]
 13 [156, 198, 23]
 14 [49, 89, 160]
 15 [68, 218, 116]
 16 [11, 236, 9]
 17 [196, 30, 8]
 18 [121, 67, 28]
 19 [0, 53, 65]
 20 [146, 52, 70]
 21 [226, 149, 143]
 22 [151, 126, 171]
 23 [194, 39, 7]
 24 [205, 120, 161]
 25 [212, 51, 60]
 26 [211, 80, 208]
 27 [189, 135, 188]
 28 [54, 72, 205]
 29 [103, 252, 157]
 30 [124, 21, 123]
 31 [19, 132, 69]
 32 [195, 237, 132]
 33 [94, 253, 175]
 34 [182, 251, 87]
 35 [90, 162, 242]
 36 [199, 29, 1]
 37 [254, 12, 229]
 38 [35, 196, 244]
 39 [220, 163, 49]
 40 [86, 254, 214]
 41 [152, 3, 129]
 42 [92, 31, 106]
 43 [207, 229, 90]
 44 [125, 75, 48]
 45 [98, 55, 74]
 46 [126, 129, 238]
 47 [222, 153, 109]
 48 [85, 152, 34]
 49 [173, 69, 31]
 50 [37, 128, 125]
 51 [58, 19, 33]
 52 [134, 57, 119]
 53 [218, 124, 115]
 54 [120, 0, 200]
 55 [225, 131, 92]
 56 [246, 90, 16]
 57 [51, 155, 241]
 58 [202, 97, 155]
 59 [184, 145, 182]
 60 [96, 232, 44]
 61 [133, 244, 133]
 62 [180, 191, 29]
 63 [1, 222, 192]
 64 [99, 242, 104]
 65 [91, 168, 219]
 66 [65, 54, 217]
 67 [148, 66, 130]
 68 [203, 102, 204]
 69 [216, 78, 75]
 70 [234, 20, 250]
 71 [109, 206, 24]
 72 [164, 194, 17]
 73 [157, 23, 236]
 74 [158, 114, 88]
 75 [245, 22, 110]
 76 [67, 17, 35]
 77 [181, 213, 93]
 78 [170, 179, 42]
 79 [52, 187, 148]
 80 [247, 200, 111]
 81 [25, 62, 174]
 82 [100, 25, 240]
 83 [191, 195, 144]
 84 [252, 36, 67]
 85 [241, 77, 149]
 86 [237, 33, 141]
 87 [119, 230, 85]
 88 [28, 34, 108]
 89 [78, 98, 254]
 90 [114, 161, 30]
 91 [75, 50, 243]
 92 [66, 226, 253]
 93 [46, 104, 76]
 94 [8, 234, 216]
 95 [15, 241, 102]
 96 [93, 14, 71]
 97 [192, 255, 193]
 98 [253, 41, 164]
 99 [24, 175, 120]
100 [185, 243, 231]
101 [169, 233, 97]
102 [243, 215, 145]
103 [72, 137, 21]
104 [160, 113, 101]
105 [214, 92, 13]
106 [167, 140, 147]
107 [101, 109, 181]
108 [53, 118, 126]
109 [3, 177, 32]
110 [40, 63, 99]
111 [186, 139, 153]
112 [88, 207, 100]
113 [71, 146, 227]
114 [236, 38, 187]
115 [215, 4, 215]
116 [18, 211, 66]
117 [113, 49, 134]
118 [47, 42, 63]
119 [219, 103, 127]
120 [57, 240, 137]
121 [227, 133, 211]
122 [145, 71, 201]
123 [217, 173, 183]
124 [250, 40, 113]
125 [208, 125, 68]
126 [224, 186, 249]
127 [69, 148, 46]
128 [239, 85, 20]
129 [108, 116, 224]
130 [56, 214, 26]
131 [179, 147, 43]
132 [48, 188, 172]
133 [221, 83, 47]
134 [155, 166, 218]
135 [62, 217, 189]
136 [198, 180, 122]
137 [201, 144, 169]
138 [132, 2, 14]
139 [128, 189, 114]
140 [163, 227, 112]
141 [45, 157, 177]
142 [64, 86, 142]
143 [118, 193, 163]
144 [14, 32, 79]
145 [200, 45, 170]
146 [74, 81, 2]
147 [59, 37, 212]
148 [73, 35, 225]
149 [95, 224, 39]
150 [84, 170, 220]
151 [159, 58, 173]
152 [17, 91, 237]
153 [31, 95, 84]
154 [34, 201, 248]
155 [63, 73, 209]
156 [129, 235, 107]
157 [231, 115, 40]
158 [36, 74, 95]
159 [238, 228, 154]
160 [61, 212, 54]
161 [13, 94, 165]
162 [141, 174, 0]
163 [140, 167, 255]
164 [117, 93, 91]
165 [183, 10, 186]
166 [165, 28, 61]
167 [144, 238, 194]
168 [12, 158, 41]
169 [76, 110, 234]
170 [150, 9, 121]
171 [142, 1, 246]
172 [230, 136, 198]
173 [5, 60, 233]
174 [232, 250, 80]
175 [143, 112, 56]
176 [187, 70, 156]
177 [2, 185, 62]
178 [138, 223, 226]
179 [122, 183, 222]
180 [166, 245, 3]
181 [175, 6, 140]
182 [240, 59, 210]
183 [248, 44, 10]
184 [83, 82, 52]
185 [223, 248, 167]
186 [87, 15, 150]
187 [111, 178, 117]
188 [197, 84, 22]
189 [235, 208, 124]
190 [9, 76, 45]
191 [176, 24, 50]
192 [154, 159, 251]
193 [149, 111, 207]
194 [168, 231, 15]
195 [209, 247, 202]
196 [80, 205, 152]
197 [178, 221, 213]
198 [27, 8, 38]
199 [244, 117, 51]
200 [107, 68, 190]
201 [23, 199, 139]
202 [171, 88, 168]
203 [136, 202, 58]
204 [6, 46, 86]
205 [105, 127, 176]
206 [174, 249, 197]
207 [172, 172, 138]
208 [228, 142, 81]
209 [7, 204, 185]
210 [22, 61, 247]
211 [233, 100, 78]
212 [127, 65, 105]
213 [33, 87, 158]
214 [139, 156, 252]
215 [42, 7, 136]
216 [20, 99, 179]
217 [79, 150, 223]
218 [131, 182, 184]
219 [110, 123, 37]
220 [60, 138, 96]
221 [210, 96, 94]
222 [123, 48, 18]
223 [137, 197, 162]
224 [188, 18, 5]
225 [39, 219, 151]
226 [204, 143, 135]
227 [249, 79, 73]
228 [77, 64, 178]
229 [41, 246, 77]
230 [16, 154, 4]
231 [116, 134, 19]
232 [4, 122, 235]
233 [177, 106, 230]
234 [21, 119, 12]
235 [104, 5, 98]
236 [50, 130, 53]
237 [30, 192, 25]
238 [26, 165, 166]
239 [10, 160, 82]
240 [106, 43, 131]
241 [44, 216, 103]
242 [255, 101, 221]
243 [32, 151, 196]
244 [213, 220, 89]
245 [70, 209, 228]
246 [97, 184, 83]
247 [82, 239, 232]
248 [251, 164, 128]
249 [193, 11, 245]
250 [38, 27, 159]
251 [229, 141, 203]
252 [130, 56, 55]
253 [147, 210, 11]
254 [162, 203, 118]
255 [43, 47, 206]
