JSBSim Physics

Project AirSim includes JSBSim integration for aircraft dynamics.

Getting Started

JSBSim examples live under client/python/example_user_scripts/jsbsim/ and are grouped by airframe:

Path

Purpose

cessna_310/

Cessna 310 example script and sim configs

x8_skywalker/

Skywalker X8 scripts, tests, and sim configs

Prerequisites

  1. Complete Client Setup (Python client installed, virtual environment activated).

  2. Launch the Project AirSim simulation server.

Cessna 310 example

Files:

Path

Purpose

cessna_310/hello_c310_jsbsim.py

Connects, loads the scene, performs a short takeoff/turn/landing demo

cessna_310/sim_config/scene_c310_jsbsim.jsonc

Scene config for the C310 example

cessna_310/sim_config/robot_c310_jsbsim.jsonc

Robot config for the C310 example

Run it from the repository root:

python client/python/example_user_scripts/jsbsim/cessna_310/hello_c310_jsbsim.py

Skywalker X8 examples

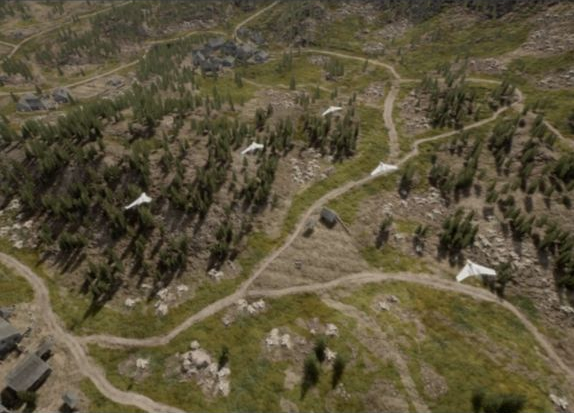

Skywalker X8 aircraft flying in V formation

Files:

Path

Purpose

x8_skywalker/hello_x8_jsbsim.py

Loads the X8 scene, seeds an air launch, and flies a waypoint circuit

x8_skywalker/x8_autopilot.py

Reusable heading, altitude, airspeed, pitch, and roll controller

x8_skywalker/run_x8_forest_swarm.py

Runs the X8 swarm example in Forest/MountainVillage

x8_skywalker/test_x8_autopilot.py

Unit tests for the X8 autopilot helper

x8_skywalker/sim_config/scene_x8_jsbsim.jsonc

Paused steppable-clock scene for a single X8

x8_skywalker/sim_config/robot_x8_jsbsim.jsonc

X8 JSBSim robot config

Run the single-aircraft example:

python client/python/example_user_scripts/jsbsim/x8_skywalker/hello_x8_jsbsim.py

Optional longer run:

python client/python/example_user_scripts/jsbsim/x8_skywalker/hello_x8_jsbsim.py --max-sim-time 120

The swarm example generates its scene at runtime and reuses the same X8 robot config.

Ground Height Mode

JSBSim robots support two ground height modes through the robot config field jsbsim-ground-mode:

{
  "physics-type": "jsbsim-physics",
  "jsbsim-ground-mode": "constant"
}

Mode

Behavior

constant

Default. Uses the terrain/floor height at the initial robot position as one fixed ground height for the whole simulation. Falls back to the scene home-geo-point.altitude if no terrain sample is available.

terrain

Samples the Unreal terrain/floor height during the simulation.

Terrain Callback Usage

Project AirSim builds a terrain-elevation callback when JSBSim initializes. The callback samples the robot’s cached terrain elevation first, then the scene terrain callback, and finally falls back to the scene home-geo-point.altitude. That initial sample is used to set JSBSim’s initial terrain elevation before RunIC().

After initialization, the callback installed into JSBSim depends on jsbsim-ground-mode:

Mode

JSBSim callback

Runtime usage

constant

JSBSimConstantGroundCallback

The Project AirSim terrain callback is sampled once at initialization. During the simulation, JSBSim receives the same fixed terrain elevation for every GetAGLevel() query. Unreal terrain is not queried again for JSBSim ground height.

terrain

JSBSimTerrainGroundCallback

JSBSim calls back during GetAGLevel() queries. The callback converts JSBSim latitude/longitude to Project AirSim NED coordinates, samples the scene terrain elevation at that location, and updates JSBSim’s terrain elevation before JSBSim computes AGL/contact data. If the sample is invalid, the last valid value is reused, then the home altitude fallback is used.

These callbacks feed JSBSim’s internal ground-height calculations, including height-above-ground and contact-related state. Project AirSim’s own collision response path, such as NeedsCollisionResponse() and CalcNextKinematicsWithCollision(), is separate from the JSBSim terrain callback.

Timestep

JSBSim robots support a configurable internal physics timestep through the robot config field jsbsim-dt, in seconds:

{
  "physics-type": "jsbsim-physics",
  "jsbsim-model": "c310",
  "jsbsim-dt": 0.008333333333333333
}

If jsbsim-dt is omitted, Project AirSim uses 1/120 s (0.008333333333333333, or 120 Hz).

Known Issues

  1. Flat ground surface (no mesh following)

    • In constant ground mode, the simulated ground is flat at the terrain/floor height sampled at the initial robot position. Different parts of the vehicle cannot rest at different heights on sloped terrain. There is no mesh-following behavior after initialization.

    • In terrain ground mode, JSBSim samples terrain height at several contact points and has the capacity to respond to irregular ground surfaces.

  2. Ground penetration during sustained ground movement

    • If a JSBSim vehicle continuously advances on the ground, it slowly sinks over time until it fully penetrates the terrain surface.
